If you run a warehouse or manufacturing facility around Port Kembla, you already know what your floors go through every single day. Forklifts turning on the same spots, loaded pallets dropping, heavy machinery sitting in fixed positions for months at a time — it’s a punishment most flooring systems just aren’t built to handle. We’ve seen plenty of concrete floors crack, chip, and deteriorate well before their time, and the cost of sorting that out mid-operation is never fun.

The good news is that the right epoxy system — properly specified and installed — absolutely can handle that kind of punishment. But not all epoxy is created equal, and that’s where a lot of facility managers get caught out. This article breaks down what you actually need to know before committing to an industrial epoxy floor in a heavy-traffic environment.

Load Bearing Capacity of Industrial Epoxy Systems

Here’s something that surprises a lot of people the first time they hear it — epoxy itself isn’t what carries the load. The concrete substrate underneath does the heavy lifting. What a quality epoxy system does is protect that substrate, distribute stress more evenly across the surface, and stop moisture, chemicals, and impact from degrading the slab over time.

That said, the thickness and formulation of the epoxy coating matters enormously in heavy industrial settings. A standard residential or light commercial epoxy might be 2-3mm thick. For Port Kembla warehouses and manufacturing floors dealing with forklifts and heavy plant equipment, you’re generally looking at:

• Broadcast systems — 4-6mm thick with aggregate broadcast into the resin for added strength and grip
• Self-levelling industrial epoxy — typically 3-5mm, excellent for smooth, even surfaces under consistent heavy loads
• Epoxy mortar systems — 6-12mm thick, the heaviest-duty option available, designed for the most demanding industrial applications

Epoxy mortar in particular is worth knowing about if your facility runs anything over 5,000kg per axle. It uses a sand or aggregate filler that dramatically increases compressive strength — we’re talking systems rated to withstand point loads from machinery that would crack a standard coated floor inside twelve months.

The other factor that gets overlooked is adhesion. An epoxy floor is only as strong as its bond to the substrate. Proper surface preparation — diamond grinding, shot blasting, and moisture testing — is what separates a floor that lasts fifteen years from one that starts delaminating after the first wet season.

Forklift Traffic Patterns and Floor Wear Analysis

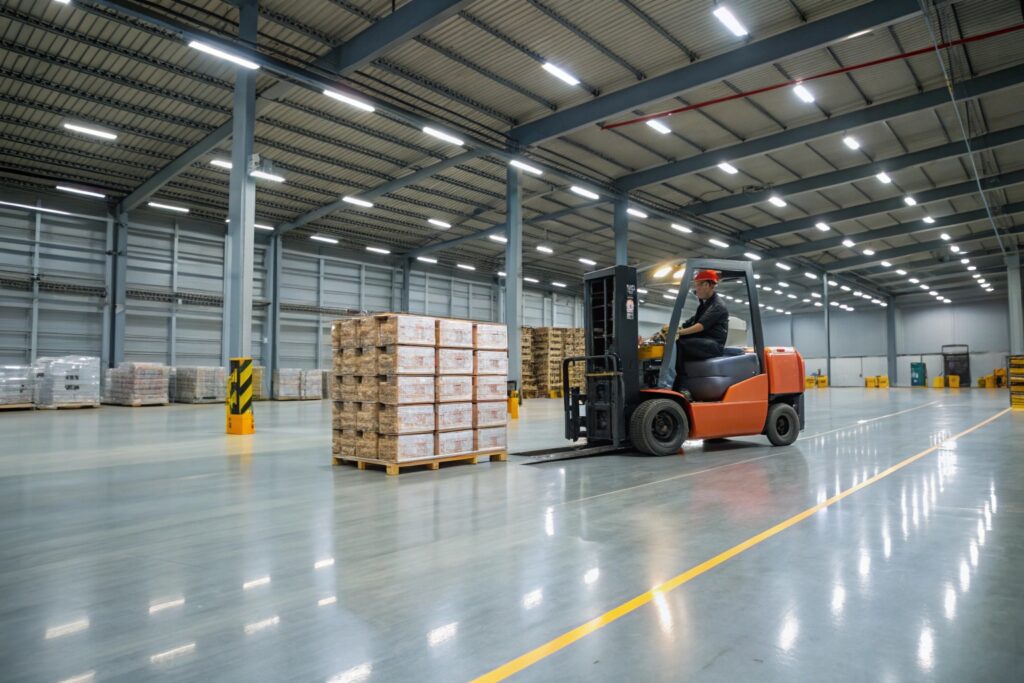

If there’s one thing that destroys industrial floors faster than anything else, it’s forklift turning points. The damage isn’t usually from the weight alone — it’s the lateral shear force created when a loaded forklift pivots on the same spot, day after day. That twisting motion is brutal on coatings that aren’t specifically designed to resist it.

In a typical Port Kembla warehouse or distribution facility, the wear pattern is pretty predictable once you know what to look for:

• Entry and exit points — constant traffic concentration, exposure to moisture and debris tracked in from outside

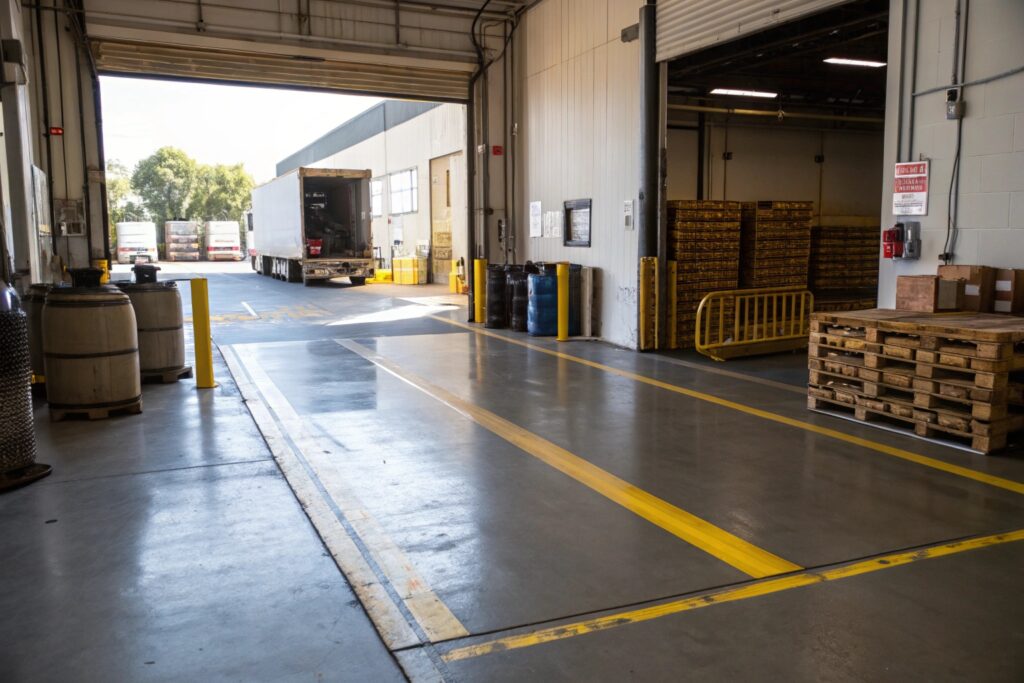

• Loading dock areas — impact from pallet drops, hydraulic tailgate pressure, and heavy foot traffic
• Turning zones near racking rows — the highest shear stress points in any facility, almost always the first areas to show wear
• Fixed machinery footprints — point load concentration and vibration transmission into the slab over time

The reason this matters when you’re specifying an epoxy system is that a one-size-fits-all approach often leaves the most vulnerable areas underprotected. A well-planned installation will actually vary the system thickness and aggregate broadcast in these high-wear zones — heavier build in turning areas and dock approaches, standard specification elsewhere.

There’s also the question of forklift tyre type. Polyurethane tyres, which are common on electric forklifts, are actually harder on floor coatings than pneumatic rubber tyres. They generate more heat through friction and create higher contact pressure per square centimetre. If your facility runs electric forklifts — which is increasingly common given the push away from LPG indoors — that’s a conversation worth having with your installer before they spec the job.

An experienced contractor will walk your facility, map the traffic patterns, and design the system around how your floor actually gets used. That kind of site-specific thinking is what separates a floor that performs for a decade from one that needs patching inside two years.

Reinforcement Options for Extreme Load Applications

When standard epoxy systems aren’t going to cut it, there are several reinforcement options that can take an industrial floor into a completely different performance category. This is particularly relevant for Port Kembla facilities connected to BlueScope Steel operations, heavy manufacturing, or any site running machinery that would make a standard warehouse look light-duty by comparison.

Epoxy Mortar Systems

Already touched on these above, but they deserve more detail here. Epoxy mortar uses a high ratio of sand or quartz aggregate mixed directly into the resin, creating a floor that’s closer to a reinforced composite than a traditional coating. Compressive strength figures of 70-80 MPa are common — well above what standard concrete achieves on its own. For facilities running overhead cranes, steel coil storage, or heavy press equipment, this is often the baseline specification rather than the premium upgrade.

Fibre Reinforcement

Some installers incorporate fibreglass or polypropylene fibres into the epoxy matrix. This adds tensile strength and crack resistance, which is particularly useful in facilities where the slab has some existing micro-cracking or where thermal expansion and contraction from industrial processes puts stress on the floor over time.

Cementitious Urethane Overlays

Worth mentioning for facilities dealing with extreme thermal shock — areas near furnaces, autoclaves, or steam cleaning operations. Cementitious urethane handles temperature fluctuation better than standard epoxy and bonds exceptionally well to concrete. It’s not strictly an epoxy product, but a lot of industrial floor contractors in the Illawarra region will recommend it as part of a hybrid system for the right applications.

Anti-Static and Conductive Formulations

For Port Kembla facilities handling flammable materials, electronics manufacturing, or any environment where static discharge is a risk, anti-static epoxy systems are available. These are engineered to dissipate electrical charge safely and meet the Australian standards for electrostatic control in hazardous areas as outlined by Safe Work Australia.

The right reinforcement choice comes down to your specific load profile, chemical exposure, thermal environment, and operational schedule. Getting that specification right before installation is far cheaper than trying to fix an underperforming floor while your operation is running around it.

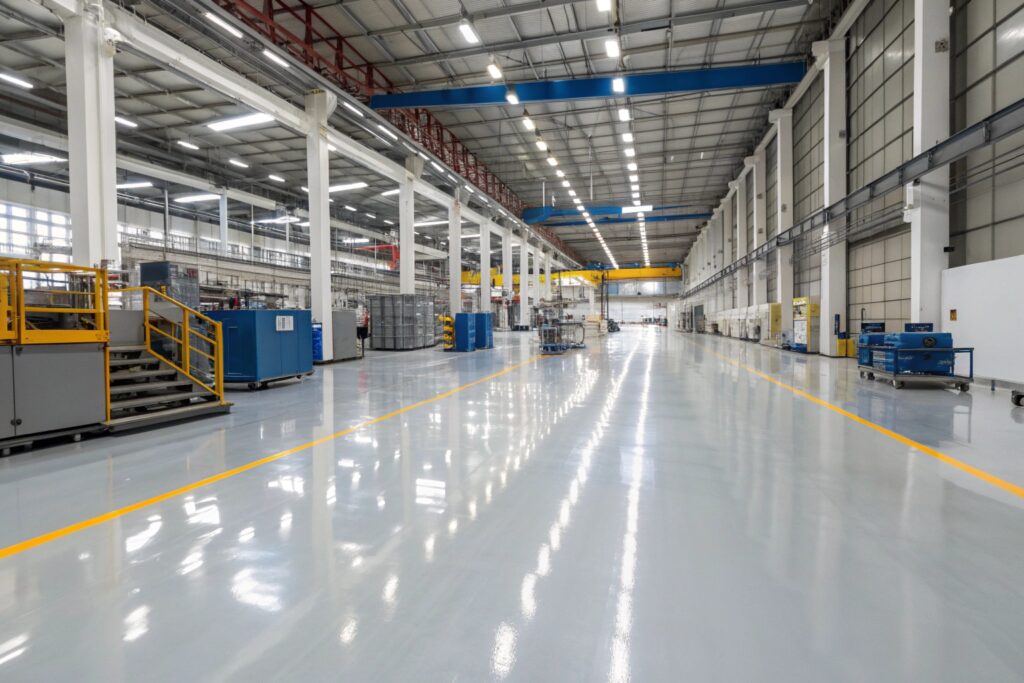

Port Kembla Manufacturing Floor Success Stories

Sometimes the best way to understand what a properly specified industrial epoxy floor can do is to look at how it’s performed in real-world conditions right here in the region. Port Kembla and the surrounding Illawarra industrial precinct has no shortage of demanding environments, and the floors that have held up best share a few common threads.

One logistics facility near the Port Kembla steelworks was dealing with a deteriorating concrete floor that had been patched repeatedly over several years. Forklifts were catching on uneven joints, dust contamination was becoming a safety issue, and the maintenance cost was adding up. After a full diamond grind, crack repair, and installation of a 6mm epoxy mortar system with a broadcast anti-slip top coat, the facility went from monthly patching jobs to zero reactive maintenance over the following eighteen months. The floor handled a fleet of electric forklifts running two shifts daily without showing meaningful wear at any of the turning points.

A food-grade manufacturing operation in the broader Wollongong area — supplying into Port Kembla distribution channels — had a different challenge. They needed a floor that could handle heavy pallet jack traffic, daily high-pressure washdowns, and meet slip resistance requirements under AS/NZS 4586 simultaneously. A cementitious urethane system with a seamless coved finish up the walls solved all three problems in a single installation. No joints for bacteria to harbour, excellent slip resistance when wet, and the thermal shock resistance to handle steam cleaning without delamination.

What these situations have in common is that neither client was served well by a generic quote. Both needed someone to actually understand the operational environment before recommending a system. That’s the difference between a floor that becomes a problem and one that quietly does its job for a decade without anyone having to think about it.

The Port Kembla industrial precinct has specific conditions worth factoring in too — coastal salt air accelerates corrosion of exposed concrete and poorly sealed joints, and the volume of heavy vehicle traffic in the area means floors near loading docks take a particular beating. Local knowledge of those conditions isn’t something you get from a contractor who doesn’t regularly work in the region.

Maintenance Schedules for High-Traffic Industrial Areas

A quality industrial epoxy floor doesn’t look after itself, but the maintenance requirements are a lot more straightforward than most facility managers expect. The goal is simple — catch minor wear before it becomes structural damage, and keep the surface clean enough that abrasive debris isn’t grinding into the coating under forklift tyres every day.

For most Port Kembla industrial facilities running heavy machinery and forklift traffic, a practical maintenance schedule looks something like this:

Daily

• Sweep or auto-scrub to remove grit, metal filings, and debris
• Spot clean chemical spills immediately — epoxy is resistant, not impervious, and prolonged exposure to certain acids or solvents will eventually cause damage

Monthly

• Full wet scrub with a pH-neutral cleaner
• Visual inspection of high-wear zones — turning points, dock approaches, and fixed machinery footprints
• Check expansion joints and coved edges for any lifting or separation

Annually

• Professional inspection of coating thickness and adhesion integrity
• Touch-up of any areas showing early wear before they become full delamination issues
• Assessment of whether a maintenance top coat is warranted to extend the system life

One thing worth understanding is that the annual inspection is where you protect your investment. Catching a 200mm patch of wear at a forklift turning point costs a fraction of what it costs to grind back and re-coat an entire bay because the damage spread unchecked for two years.

The facilities that get the longest life from their epoxy floors are the ones that treat maintenance as a scheduled operational cost rather than something that only happens when there’s a visible problem.

Get the Right Floor Specified for Your Facility

Heavy duty epoxy flooring in Port Kembla isn’t a product you pick off a shelf — it’s a system that needs to be matched to your specific loads, traffic patterns, chemical exposure, and operational schedule. Getting that specification right from the start is what determines whether your floor is still performing in ten years or causing headaches in two.

If you’re managing a warehouse, manufacturing facility, or industrial site in the Port Kembla and Wollongong region and you want an honest assessment of what your floor actually needs, get in touch. We’ll walk the site, understand how it operates, and give you a straight answer on what system makes sense — no pressure, no generic quote that ignores the realities of your environment.
